CNC 6-Axis Spring Coiling  Machine

6 Axes Diameter of the wire: Φ8.0-16.0mm

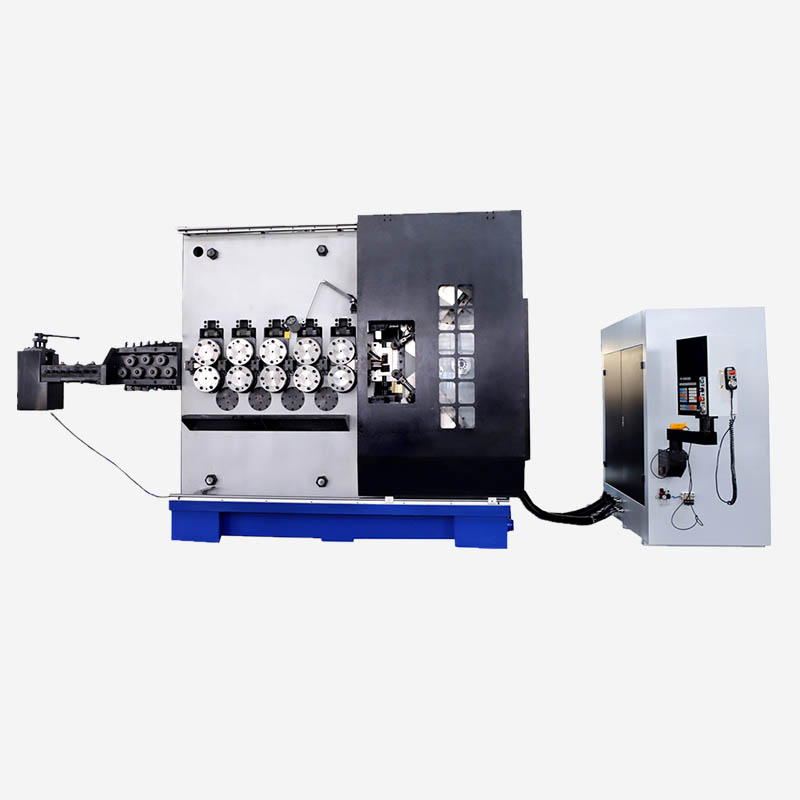

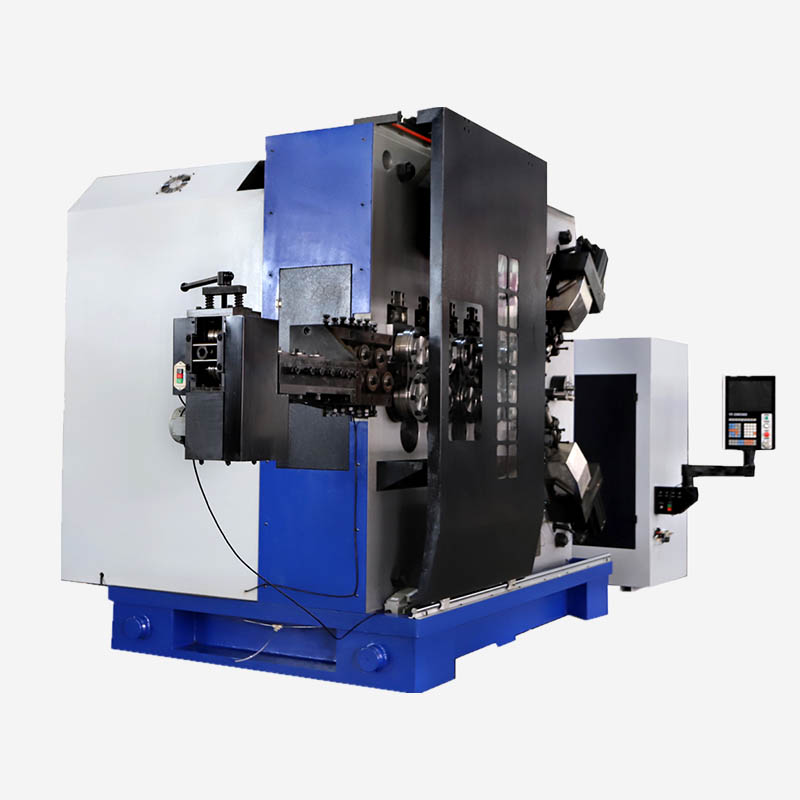

YF-CNC-86160: High-Precision CNC Spring Coiling Machine for Large Wire Diameters

The YF-CNC-86160 is our most advanced 6-axis CNC spring coiling machine, specifically designed for heavy-duty applications. With a wire diameter range of 8.0-16.0mm, this model is the largest wire diameter compression spring machine developed by our factory, ensuring exceptional performance in industrial-grade spring manufacturing.

Equipped with 5 pairs of wire feed wheels and a powerful 47.0kW wire feeding system, it provides stable, precise, and high-speed operation. The machine features dual 15kW outer diameter servo motors, dual 22kW cutter servo motors, and a 5.5kW pitch axis servo motor, guaranteeing smooth and efficient production.

With a maximum spring outer diameter of 260mm and unlimited wire feeding length, this model is perfect for producing large compression springs used in automotive, heavy machinery, and industrial applications. It supports left and right rotation for enhanced flexibility.

Designed for high efficiency and durability, the YF-CNC-86160 is backed by CE certification, ISO quality standards, and 24/7 technical support. Contact us today to upgrade your spring production!

Technical Parameters:

Model		YF-CNC-86160
Diameter of the wire(mm)		Φ8.0-16.0mm
Number of axes		6
Max. ODofspring(mm)		260
Length of the feeding wire		No limitation
Quantity of the wire feed wheels		5pairs
Rotation		Left or right
Servo Motor(kw)	Outside diameter servo power	15kw*2
	Cutter servo power	22kw*2
	Pitch axis servo power	5.5kw
	Wire feeding	47.0kw
Input voltage		380V±10%V50HZ (Customized)
Main Machine(L*W*H)(mm)		4600*2200*2900
Net Weight of Machine (kg)		20T
