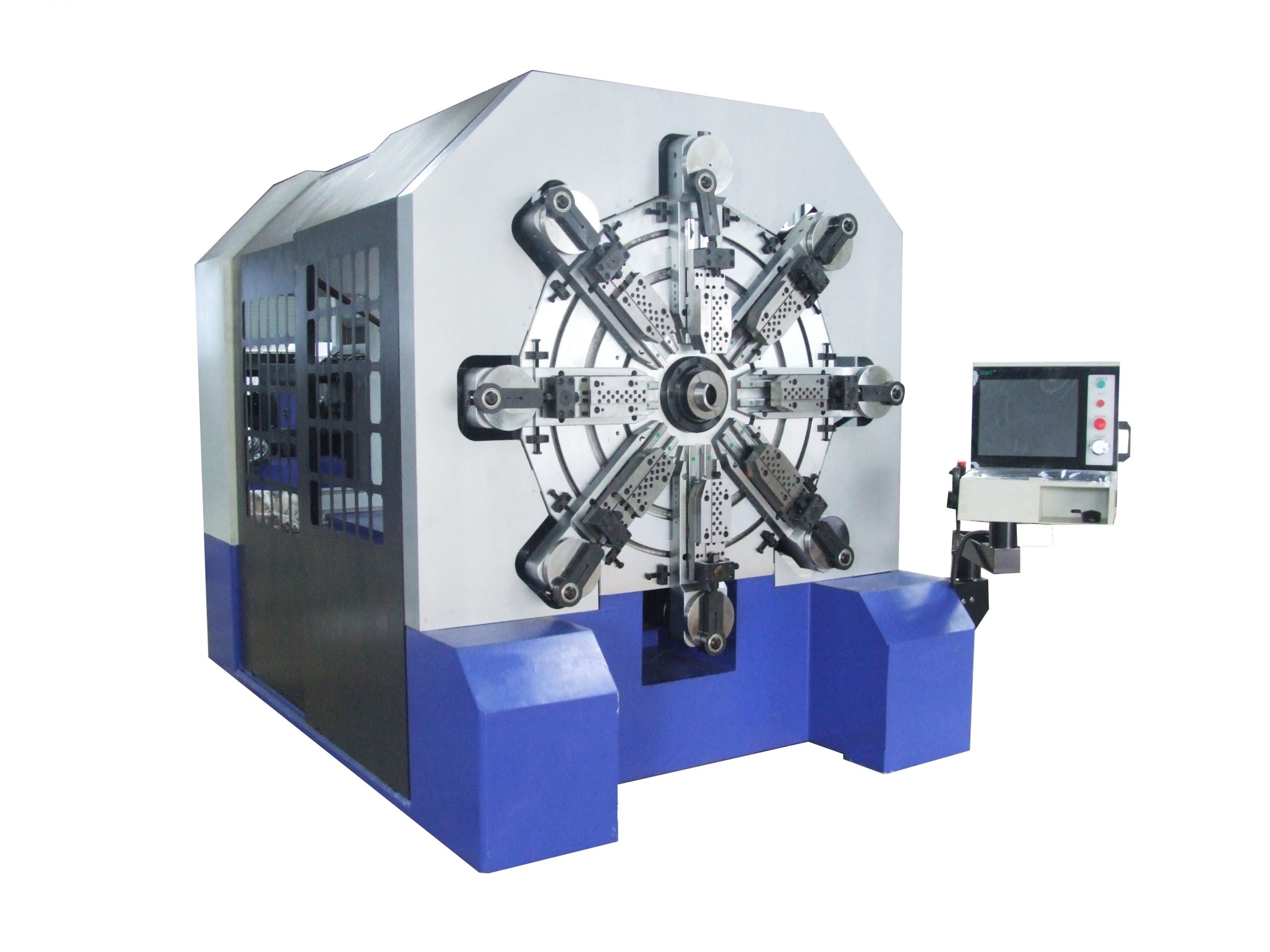

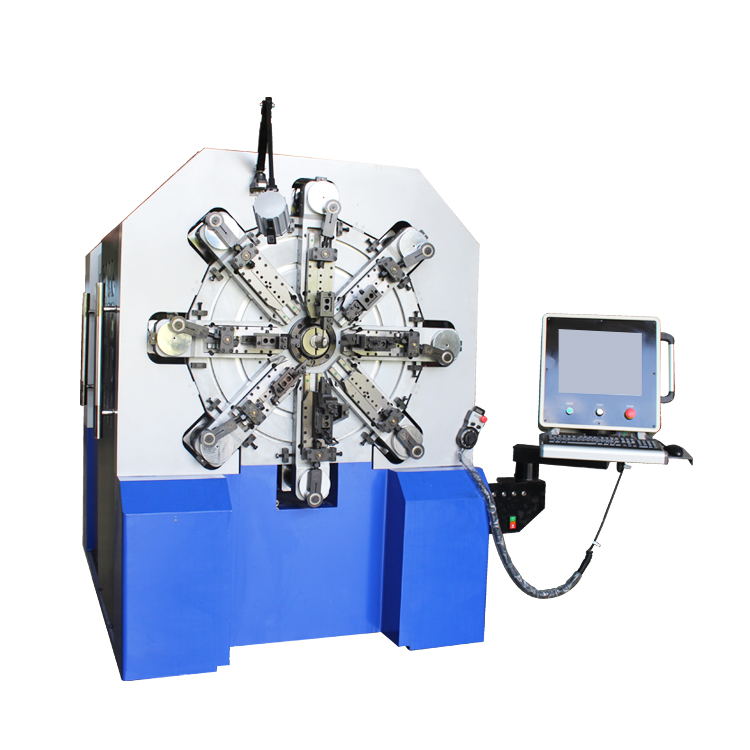

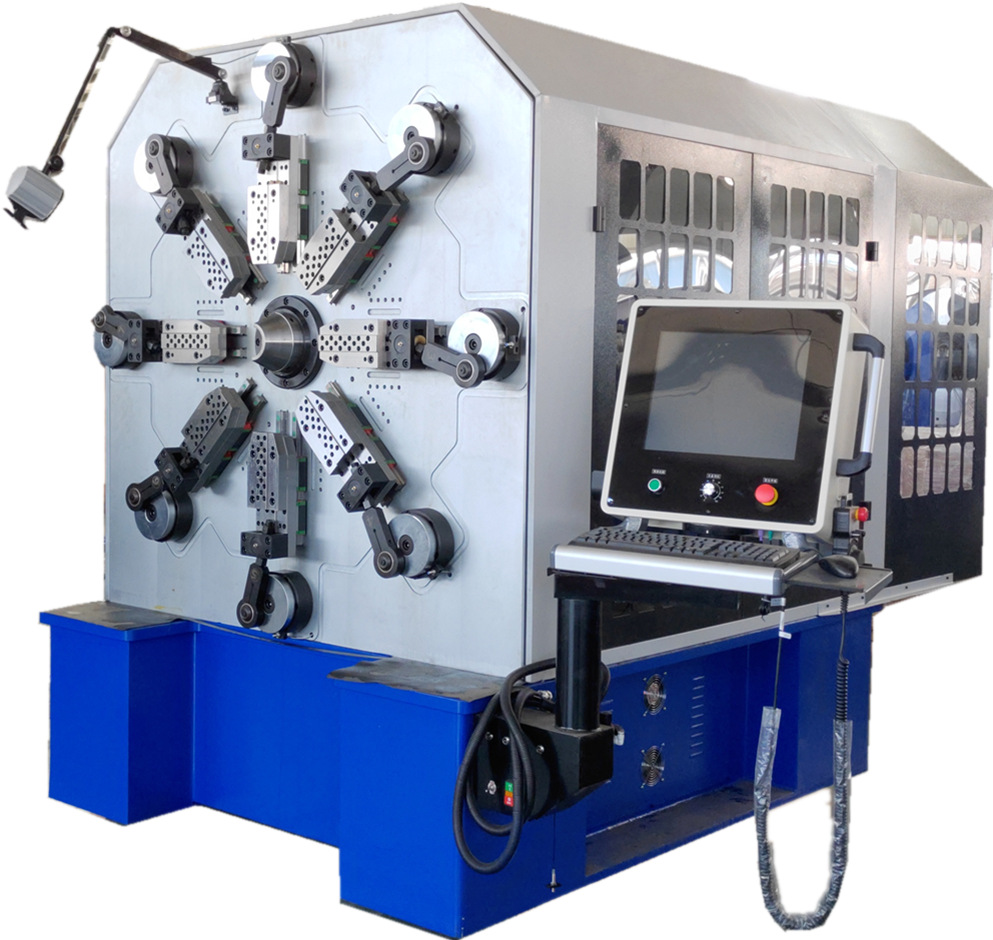

CNC 12axis Camless Spring Machine ; CNC spring forming machine
Product introduction:
- This machine is for camless designset up spring with high speed and accuracy And with stable good enough .
- Adopt Taiwan's computer control system an equipped with servo motor imported from Japan.
- Wire feed with the function of rotary wireso it is easy to adjust .
- Computer interface displayed in Chinese and English which makes the operation easy .
- It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring .
Technical Parameters:
| Model | CNC-1250 | CNC-1260 | CNC-1280 | |
| Color | Grey/Blue
(customized) |
Grey/Blue
(customized) |
Grey/Blue
(customized) |
|
| Diameter of the steel wire(mm) | Φ2~Φ5 | Φ2.8~Φ6 | Φ3~Φ8 | |
| Total power (kw) | 33 | 41.8 | 61.6 | |
| Number of axes | 12 | 12 | 12 | |
| Number of the wire feed wheel | 3 pairs | 4 pairs | 4pairs | |
| Servo motor | Wire feeding | 7.0KW | 11KW | 15KW |
| Rotary wire | 7.0KW | 4.5KW | 4.5KW | |
| Rotary mandrel | 1.5KW | 2.7KW | 3.4KW | |
| Curved shaft | 1.5KW | 2.0KW | 2.7KW | |
| Knife rest of slide | 2.0KW*8 | 2.7KW*8 | 4.5KW*8 | |
| Main Machine(L*W*H)(mm) | 2300*1980*2250 | 3150*2550*2600 | 3150*2550*2600 | |
| Net Weight of Machine (kg) | 4500 | 6500 | 6800 | |
Details of the fuselage
