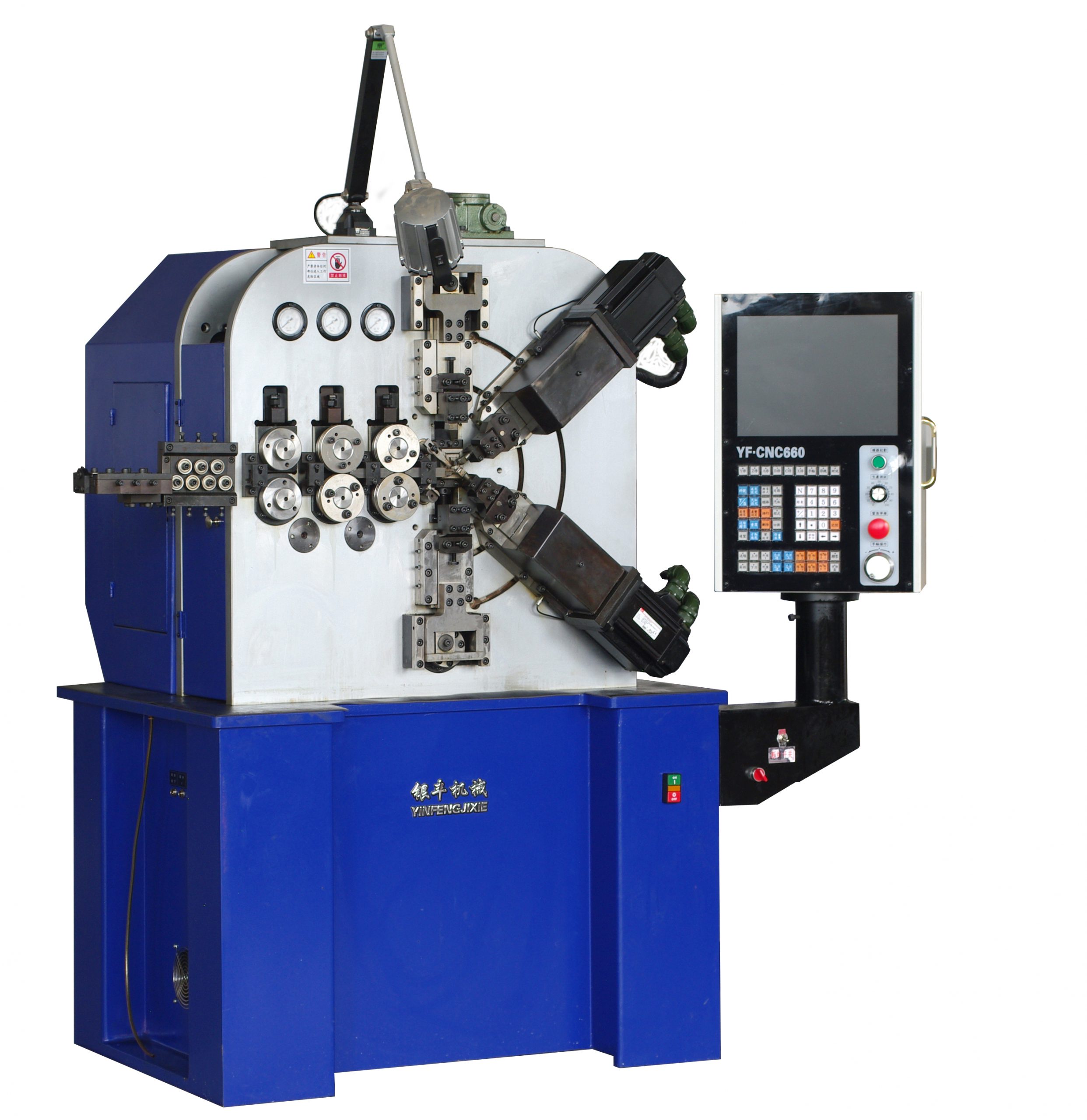

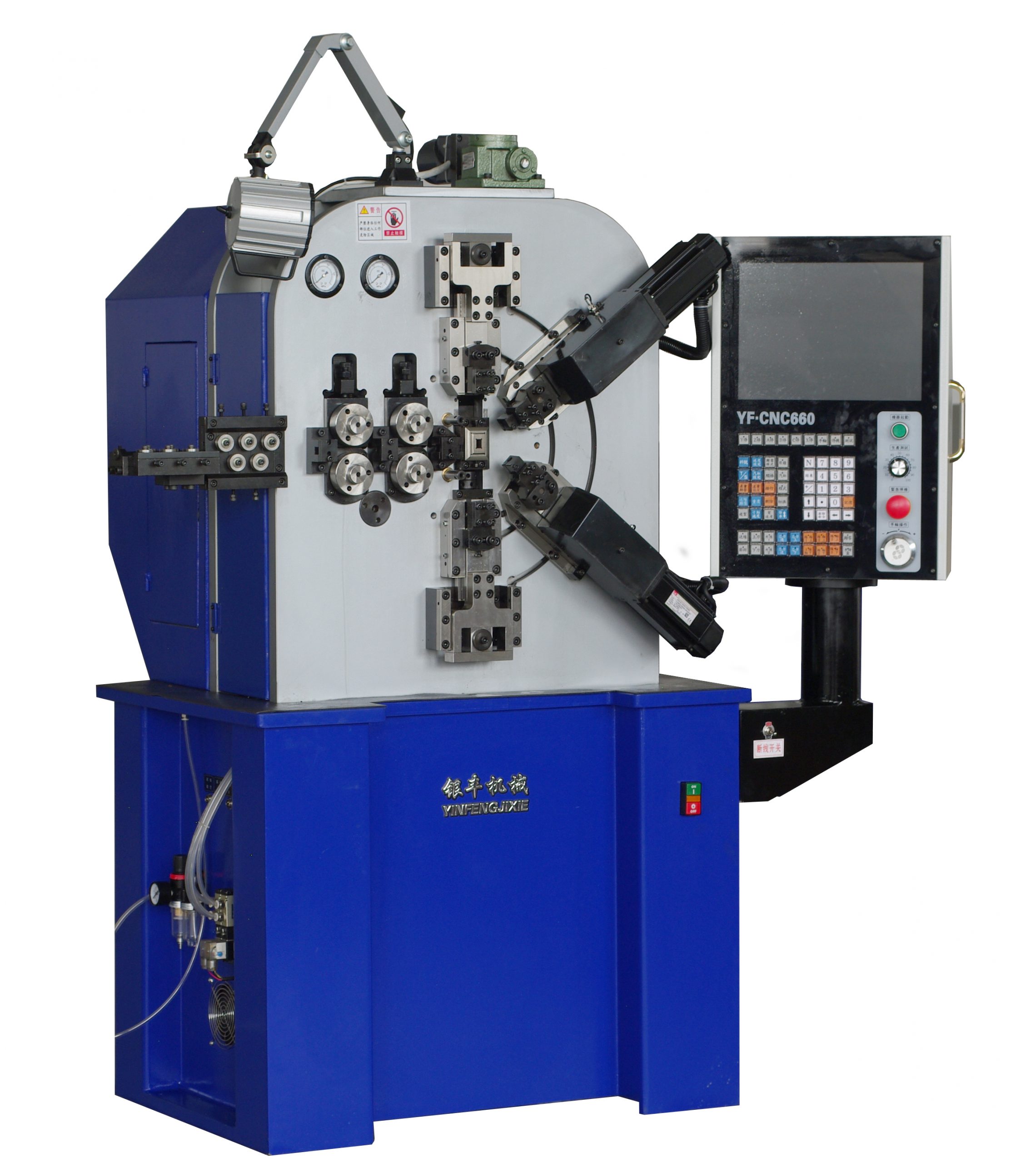

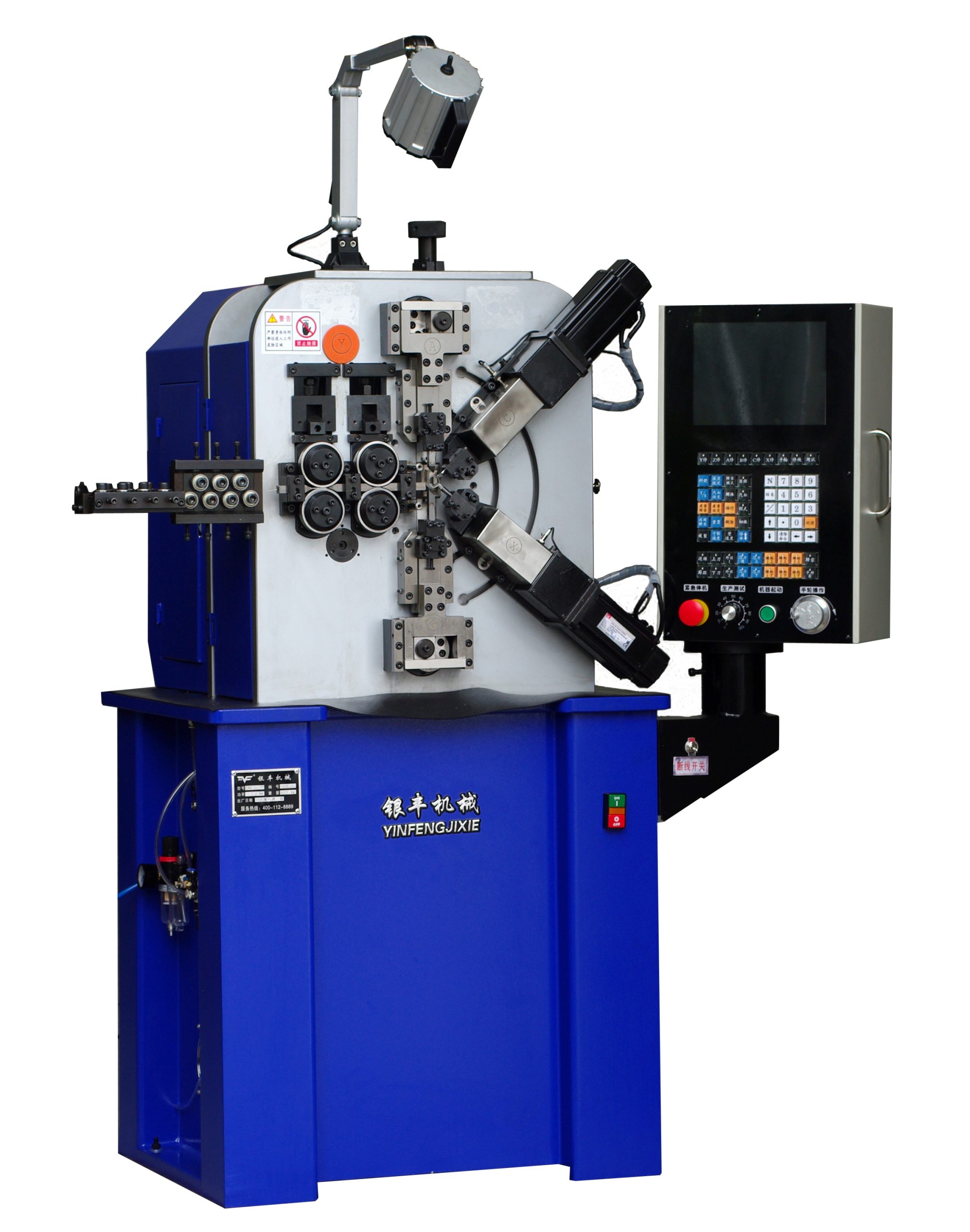

CNC 6axis Spring Coiling Machine
Mechanical features and functions:
- Controlled withsix axis: wire feed axis ,cam axis ,up-cut blade axis ,down-cut blade axis and space axis .
- The five axis can work single-step or synchronously .
- Computer interface displayed in Chinese and English makes which the operation easy .
- Equipped with right or left-handed winding blade rest .
- The cutter can perform straight cut and twist cut .
- The computer has software functions of automatic programming.
Technical Parameters:
| Model | CNC-620 | CNC-630 | CNC-645 | |
| Color | Grey/Blue
(customized) |
Grey/Blue
(customized) |
Grey/Blue
(customized) |
|
| N0. of the CNC axis | 6 | 6 | 6 | |
| Diameter of the wire(mm) | Φ0.4~Φ2.0 | Φ1.2~Φ3.5 | Φ1.5~Φ4.5 | |
| Max. OD of spring(mm) | Φ30 | Φ50 | Φ65 | |
| Length of the feeding wire | No limitation | No limitation | No limitation | |
| Wire feeding speed(m/min) | 110 | 75 | 75 | |
| Amount of the wire feeding wheel | 2pairs | 2pairs | 3pairs | |
| Rotation | Left or right | Left or right | Left or right | |
| Forming Way | Double points | Double points | Double points | |
| Servo Motor(kw) | OD | Up:0.4
Down:0.4 |
Up:1.0
Down:1.0 |
Up:1.5
Down:1.5 |
| Blade | Up:1.0
Down:1.0 |
Up:1.3
Down:1.3 |
Up:1.8
Down:1.8 |
|
| Pitch | 0.4 | 0.75 | 1.0 | |
| Wire feeding | 2.9 | 5.5 | 7.5 | |
| Main Machine(L*W*H)(mm) | 1300*800*1800 | 1500*1000*1800 | 1700*1200*1900 | |
| Net Weight of Machine (kg) | 400 | 800 | 1450 | |
