CNC 2axis Spring Coiling Machine

Details

CNC 2axis Spring Coiling Machine

Mechanical features and functions:

1. The machine is designed with cam, adjustable speed, high precision and good stability.
2. Taiwan computer control system and imported servo motor from Japan
3. The wire feeding system adopts the transfer mechanism,  more stable, and the adjust is more convenient.
4. Computer interface for Chinese and English, easy to operate
5. Suitable for producing straight spring, pagoda press spring, rectangular spring.

Technical parameters:

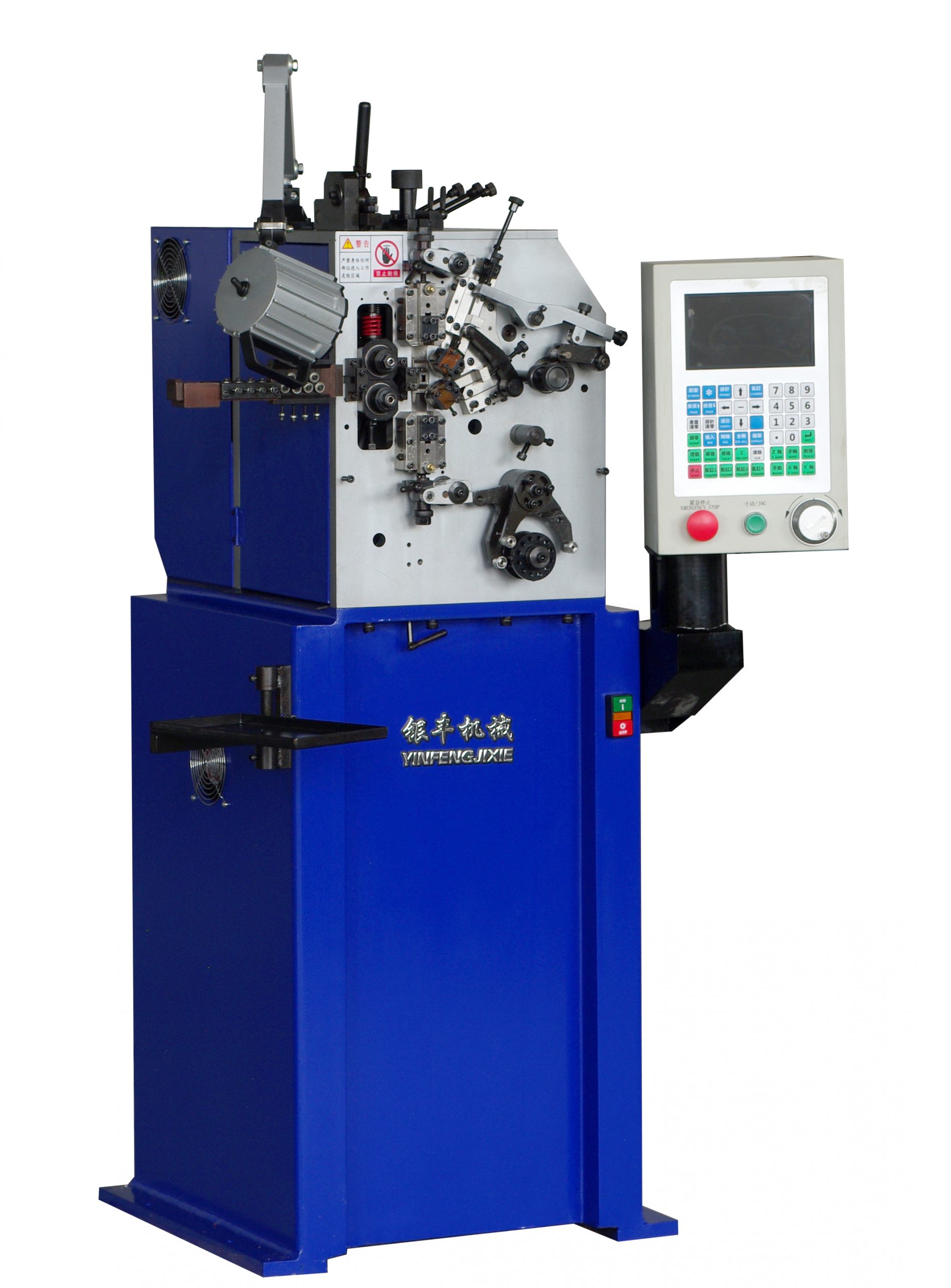

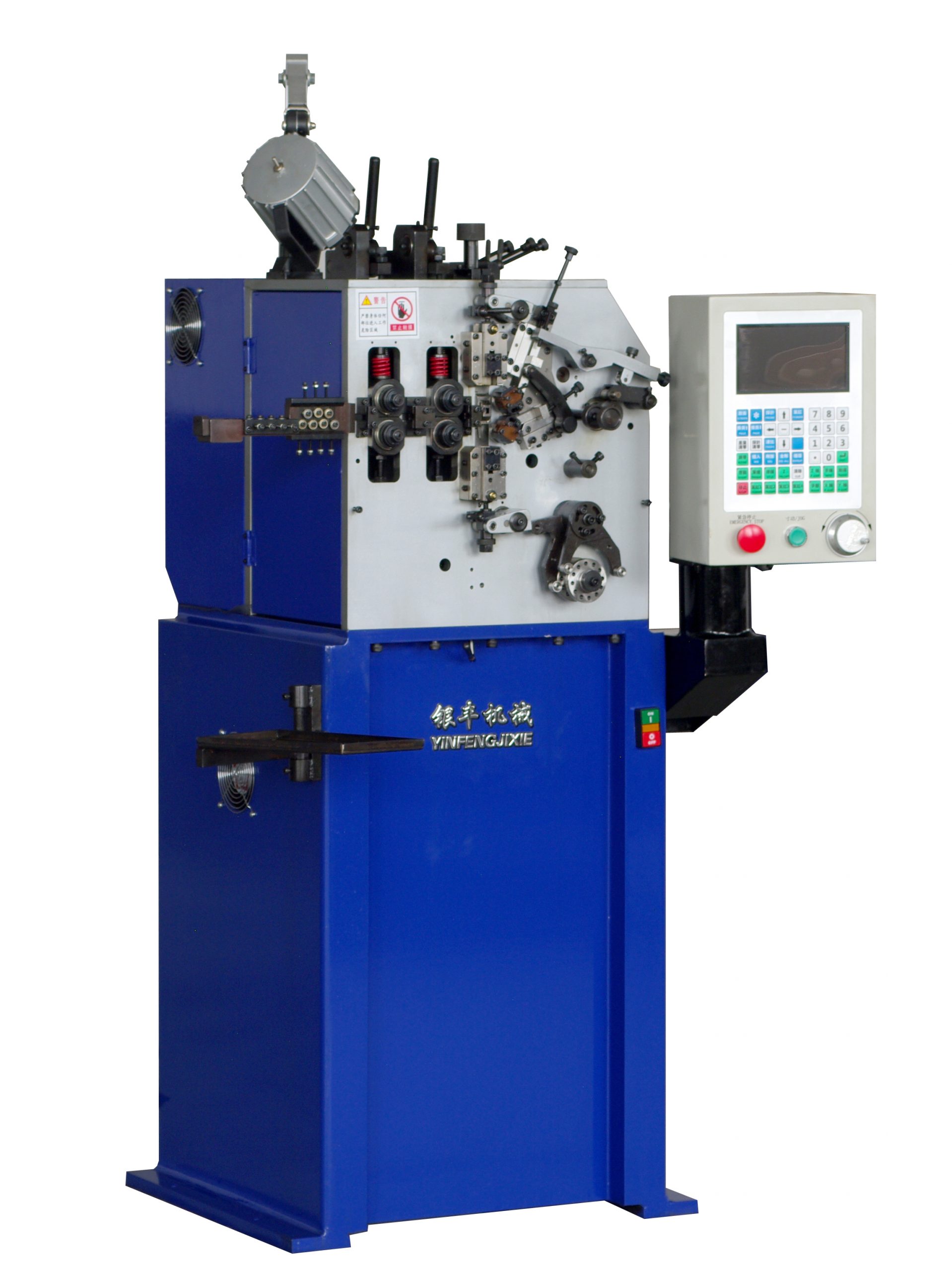

Model		CNC-208	CNC-212
Color		Grey/Blue (customized)	Grey/Blue (customized)
Diameter of the wire(mm)		Φ0.15~Φ0.8	Φ0.2~Φ1.2
Max. OD of spring(mm)		Φ20	Φ25
Wire feeding speed(m/min)		100(max)	100(max)
Instruction value of wire feeding(mm)		±0.01~±9999.99	±0.01~±9999.99
Instruction value of cam		±0.1°~±359.9°	±0.1°~±359.9°
Servo motor	Wire feeding	1.0kw	1.5kw
	Cam	1.0kw	1.0kw
Net Weight of Machine (kg)		350	450
Machine dimension(L*W*H)(mm)		660*800*1500	660*920*1500
